Double inlet weighing and packing systems for the pre-made bag

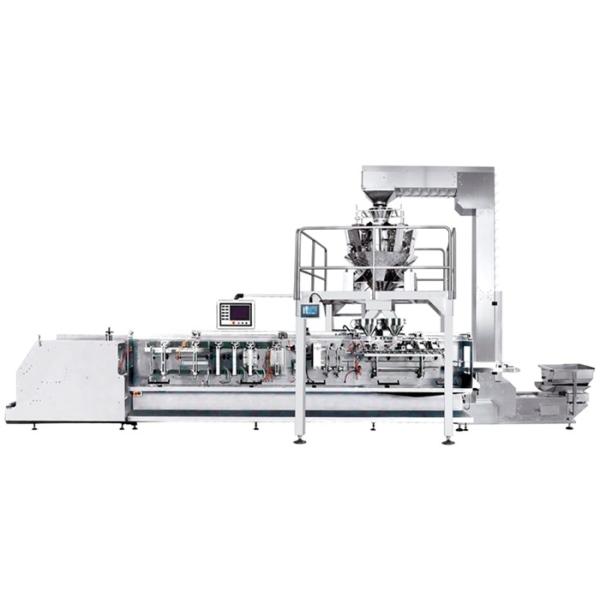

The packaging System is including Vibrator feeder, Z conveyor, Working platform, Multihead weigher, Double inlet horizontal packing machine. Versatile in design, easy to link up with other downstream packaging equipment, such as powder filler, multiheads weigher, metal detector, check weigher, case sealer etc.what's more, the system is safety guard protected for high speed and consistent production. The innovative and practical solution at reasonable costs.
Mechanical character
| 1.High weighing precision and efficiency. |
| 2.Wide scope of application, Suitable for various materials. |
| 3. Fully-automatically completes all the process from feeding, weighing, date-printing, and finished products outputting; |
| 4.Used for the pre-made bag, Stable operation, high speed and high production efficiency, beautiful bag making.
|
Features
Stable operation, high speed and high production efficiency, beautiful bag making, no leakage sealing and filling, effectively improve the quality of the packing machine in the material filling and bag appearance.
Packing Pouch
Application
It is suitable for weighing granule, slice, roll or irregular shape products such as candy, seed, jelly, fries, coffee bean, peanut, puffy food, biscuit, chocolate, net, pet food, small hardware, etc
Horizontal pouch packaging machine process flow diagram
| Check weigher Reject unqualified products, it can sort the product and make statistics (if already equipped with other weight detection equipment then no need to use this machine) |
| Horizontal metal detector: It is used to detect the metal which mixed during the production process. It is suitable to use after finishing packaging (if already equipped with another metal detector then no need to use this machine). |
| Dropped metal detector: It is used to detect the metal which mixed during the production process. It is suitable to use before packaging. It is installed between a weigher and a packaging machine, space-saving (if already equipped with other metal detectors then no need to use this machine). |
| Metal detector combined with check weigher: It is used to detect the metal and check weight, combined the check weigher with a metal detector, save cost, and less commissioning and maintenance time. |
| Rotary collecting table: Used to collect products from the production line, Suitable for production lines that require manual processing or waiting for further packaging operations. |
Advantages: The main advantage is reflected in weighing accuracy, which indicates that the average error between actual weight and displayed weight is smaller, it could help customers save materials; The same interval time for hopper doors repeat open and close make vibration torque consistency, which makes the mechanical structure mutual friction loss is minimized and the machine can be in long-term stable operation.
Principle: "stable time development model" is through the accurate calculation and controlling of hopper motor time, linear vibrator delay time, vibrator operation time, etc to ensure sensor reads the current weight after setting stable time when each time material fills into the weighing hopper, which maximum to avoid interference from machine shaking since the stable time is inconsistent leading to the vibration mode torque are the difference.
Molds and components: Key components such as hoppers, vibrating pans, waterproof cover are made by high-precision molds, which have high consistency and interchangeability; Sensors we use is from Japan and Germany well-known brand; Circuit board is in excellent industrial-standard design, which the chip selection, PCB design, and protection are based on the industrial-grade materials and the production process.
